Battery Energy Storage System (BESS)

Wall mounted battery pack

Sunjoy 10kwh ,51.2v 200ah Wall mounted battery pack ,16 para...

  • Dimension: 160*400*580mm
  • Application: solar energy ,home energy storage
  • Power : 10KWHW
  • Voltage : 48V
  • Model : SJBDR-W48200-1

Description

<meta charset="utf-8"/><title>sunjoy Golf Cart Battery</title>

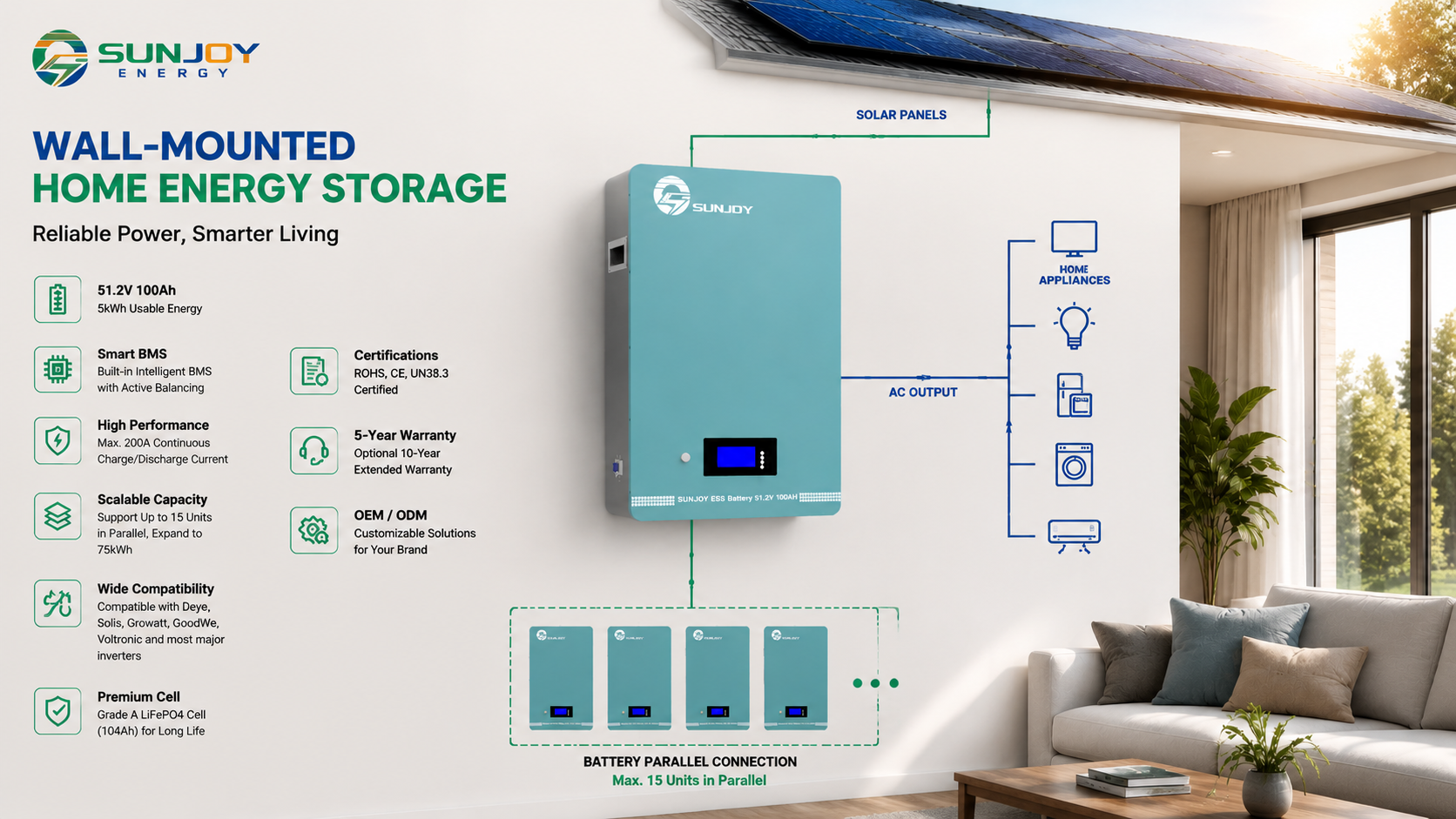

Sunjoy Wall mounted Battery
 Product modelSJ51250W SJ512100W  SJ512200W SJ512300W
Energy2560W5120W10240W15360W
 Battery Rated Voltage 51.2V
 Battery Rated Capacity (0.2C) 50A 100A 200A 300A
Standard charging current10A20A40A60A
Continuous Charging & Dischargin Current (Max.)50A100A200A300A
Operating Voltage Range40-58.4V
MaterialLiFePo4
Cycle Life6000 times
OptionLCD , Bluetooth & Heating module
CustomizationCapacity , Voltage , Structure and Appearance , IP
Diamension (mm)365* 430 * 135

600*500*165

650*505*185

850*500*240

Weight≤24kg

≤48.5kg

≤86kg≤130kg
Storage Temperature10℃~35℃
Storage Humidity10%~90% RH
Shipping Voltage51V～52V
Charging Temperature0~55℃
Discharge Temperature-20~55℃
Cooling ModeNatural Cooling
