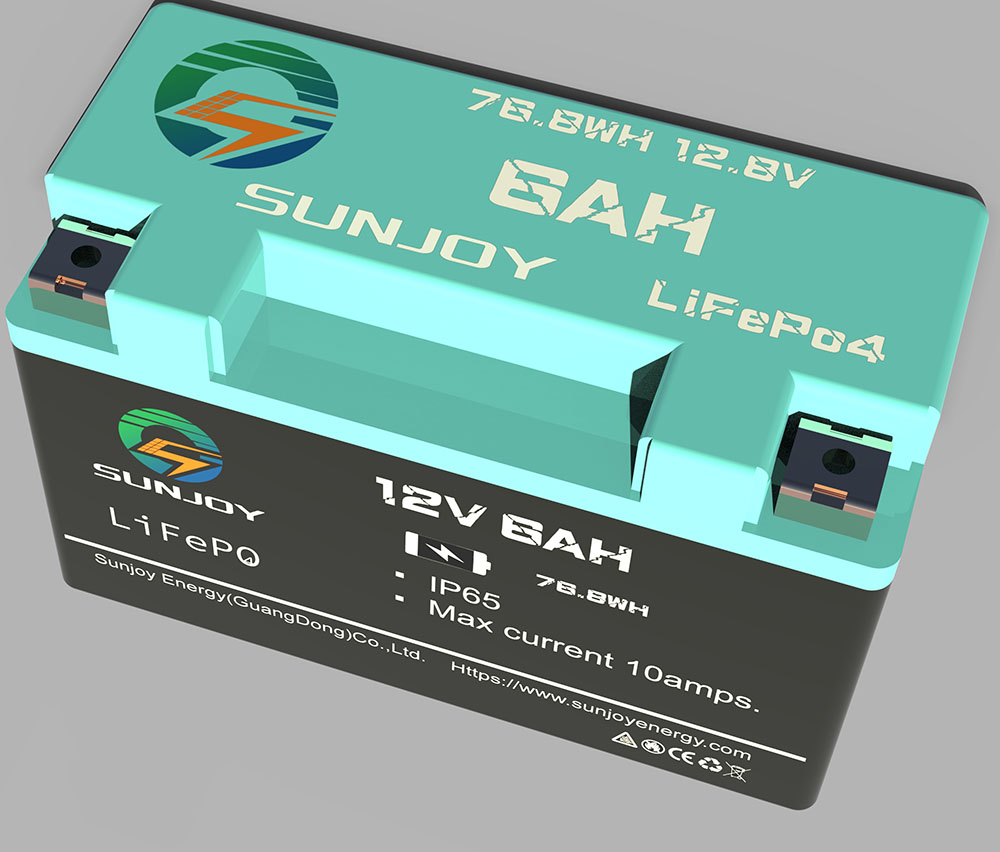

12 volt 6ah start-stop lithium ion battery

Upgrade to Smarter Off-Grid Power: Say goodbye to heavy, ine...

  • Application: E-tool energy storage
  • Power : 76.8w
  • Voltage : 12v
  • Model : SJMT1206

Description

ModelSJ-P-1206SJ-P-1220SJ-P-1260
Nominal Parameters
Battery ChemistryLiFePO4
Voltage1.28V
Operating Voltage10-14.6V
Shipping Voltage12V~13V
Charge cut-off voltage14.6V
Discharge cut-off voltage8V
Charger voltage

       (CC/CV)
DC15V/1.2ADC15V/10ADC15V/12A
Capacity6Ah20Ah68Ah
Energy90Wh256Wh768Wh
Charge/Discharge

       Current
Recommend1.2A10A12A(0.2C)
Max.5A20A60A (1C)
Peak25A(2S)35A(2S)100A(3S)
Basic Parameters
Recommend Depth of Discharge90%
Dimension (W/H/D) 151x95x100mm229x212x108mm229x138x212mm
0.5*0.3*0.3in0.75*0.69*0.35in0.75*0.45*0.69in
Weight Approximate1.6kg/3.lbs3kg/6.6lbs7kg/15.4lbs
IP Rating of EnclosurIP65
Working TemperatureCharge:-20℃~60℃ Discharge:-20℃~70℃
Storage TemperatureWithin 2 months:-20℃~40℃
Within 6 months:-10-35℃
Humidity10%~90% RH
Altitude≤2000m
Cycle Life2000 cycles (0.2C)
OptionHeat | can |RS485 |Bluetooth
Warranty Period [3]5 years
CertificationUL1973, CE-EMC, UN38.3, MSDS

Product Introduce

SERIES OVERVIEW

The Sunjoy Energy SJ-P Series represents a premium line of lightweight, high-performance Lithium Iron Phosphate (LiFePO4) battery packs engineered to replace traditional lead-acid batteries. Manufactured by Sunjoy Energy, these batteries feature an IP65-rated rugged enclosure, wide temperature resilience, and customizable smart communication options including Bluetooth, RS485, CAN, and built-in heating elements. Offering scalable energy storage solutions from 6Ah up to 68Ah with a deep 90% DOD, Sunjoy Energy delivers dependable, long-lasting power for RVs, marine applications, solar setups, and outdoor equipment.


KEY FEATURES

  • Sunjoy Energy Advanced LiFePO4 Chemistry: Built with superior thermal and chemical stability compared to standard lithium-ion, ensuring enhanced safety and an exceptional lifespan of 2,000+ cycles.

  • 90% Deep Discharge Capability: Sunjoy Energy battery packs maximize usable energy with a recommended 90% Depth of Discharge (DOD), far exceeding standard lead-acid performance.

  • All-Weather & All-Terrain Ready: Fully sealed with a Sunjoy Energy IP65 waterproof rating, operating flawlessly in extreme temperatures from -20°C up to 70°C.

  • Smart Customizable Upgrades: Optional support for Sunjoy Energy's integrated self-heating matrix (for sub-zero charging), CAN bus, RS485 communication, and Bluetooth app monitoring.

  • Global Safety Certifications: Fully tested and certified under industry-leading standards including UL1973, CE-EMC, UN38.3, and MSDS.

  • Long-Term Reliability: Backed by Sunjoy Energy's industry-leading 5-year commercial warranty period.
