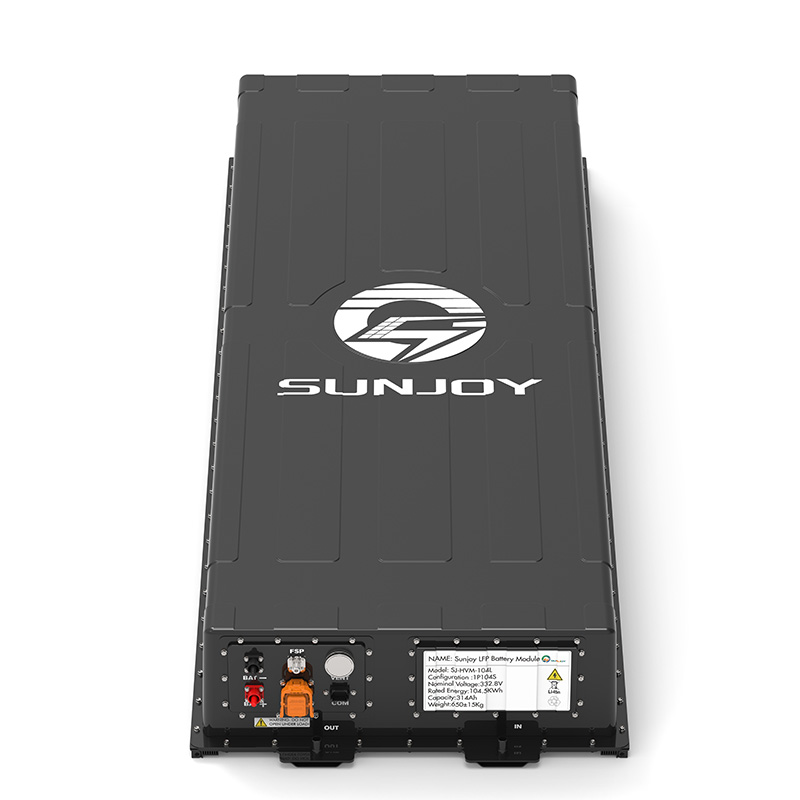

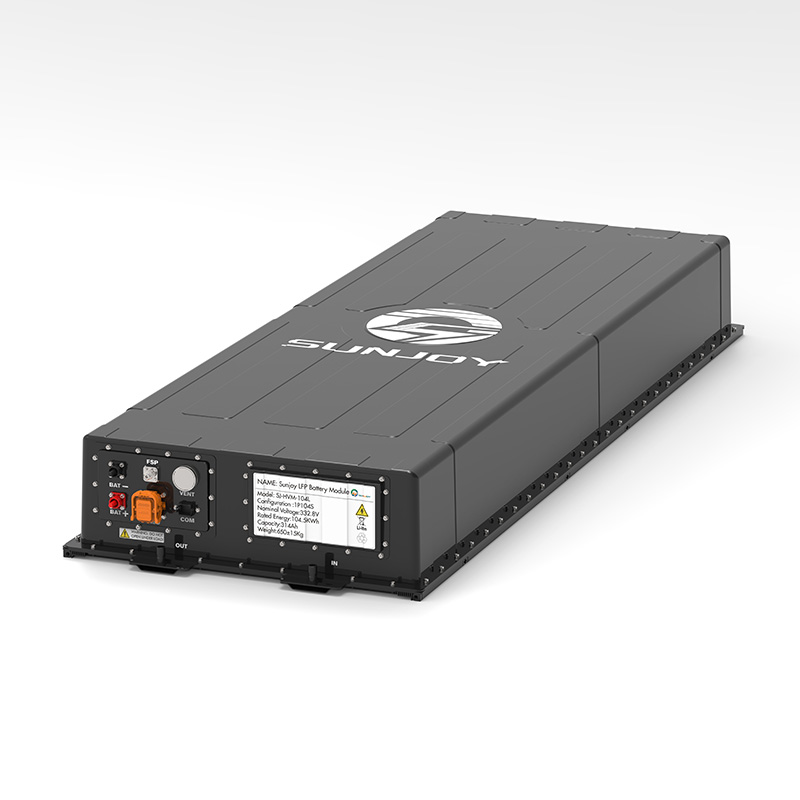

Discover Sunjoy Energy's SJ-HVM-104L liquid-cooled battery m...

Next-Generation 314Ah LFP Chemistry: Utilizes high-capacity, long-cycle life Lithium Iron Phosphate cells in a stable 1P104S configuration, yielding a robust nominal voltage of $332.8\text{V}$ and a massive energy capacity of $104.5\text{kWh}$ per single module.
Advanced Liquid Cooling Architecture: Engineered with an integrated aluminum brazed cold plate mechanism, guaranteeing an ultra-uniform temperature variance ( $\Delta T \le 2^\circ\text{C}$ ) across all cells. This active thermal management significantly extends battery service life and maximizes round-trip efficiency (RTE).
Multi-Tiered Safety & Fire Suppression Integration: Equipped with a dedicated Fire Suppression Port (FSP) for seamless automated fire control linkup, a high-reliability Manual Service Disconnect (MSD) for safe maintenance isolation, and a specialized pressure relief vent to mitigate thermal runaway risks.
Optimized for Utility-Scale Footprint: With dimensions of $2172 \times 770 \times 250\text{mm}$ the module maximizes spatial energy density, allowing effortless slide-in integration into high-voltage 20ft or 40ft containerized centralized BESS solutions.

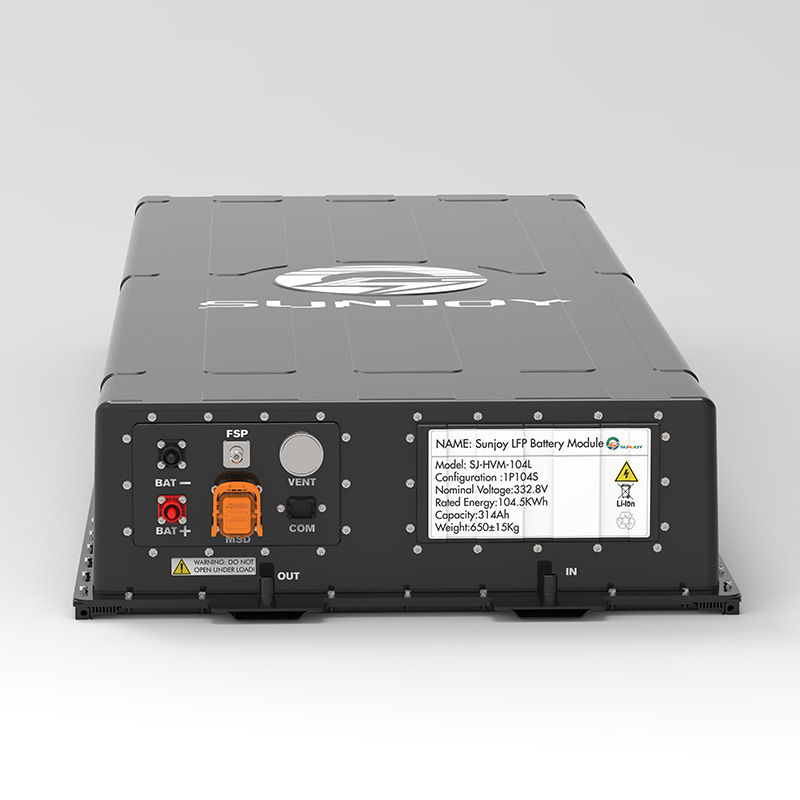

Designed with a clean, industrial-grade layout optimized for blind-mating and rapid field deployment:

High-Voltage Terminals: Touch-proof, color-coded connectors (BAT+ / BAT-) minimizing installation errors.
MSD Connection: Center-mounted Manual Service Disconnect with built-in high-voltage interlock (HVIL) to ensure maintenance personnel safety.
Communication Interface (COM): Integrated multi-pin robust interface for BMS communication, addressing, and low-voltage control loops.
Fluid Connectors: Low-profile, dry-break IN/OUT coolant ports at the base plate level to prevent accidental leakage near high-voltage electronics.
