Sunjoy Energy SJ-HE-10K-48W 10kWh Wall Mounted LiFePO4 Solar Battery | 51.2V 200Ah Home Energy Storage System
Sunjoy Energy SJ-HE-10K-48W is a high-performance 10kWh wall...
- Dimension: 435*576*238mm
- Application: Home Energy Storage System
- Power : 10kw
- Voltage : 51.2
- Model : SJ-HE-10K-48W
Description
Product Introduce
Product Detailed Dscription

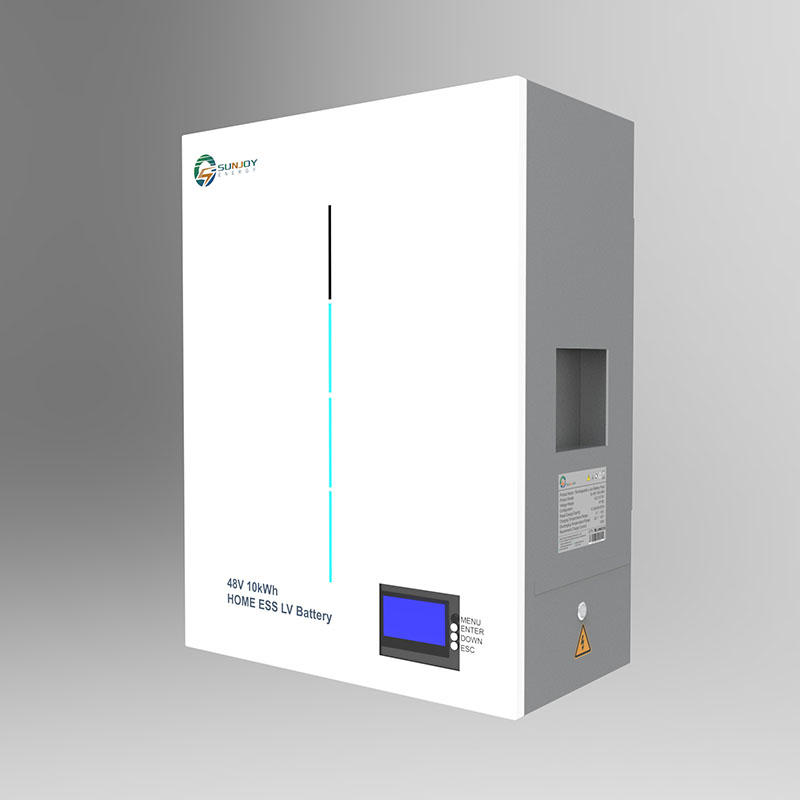

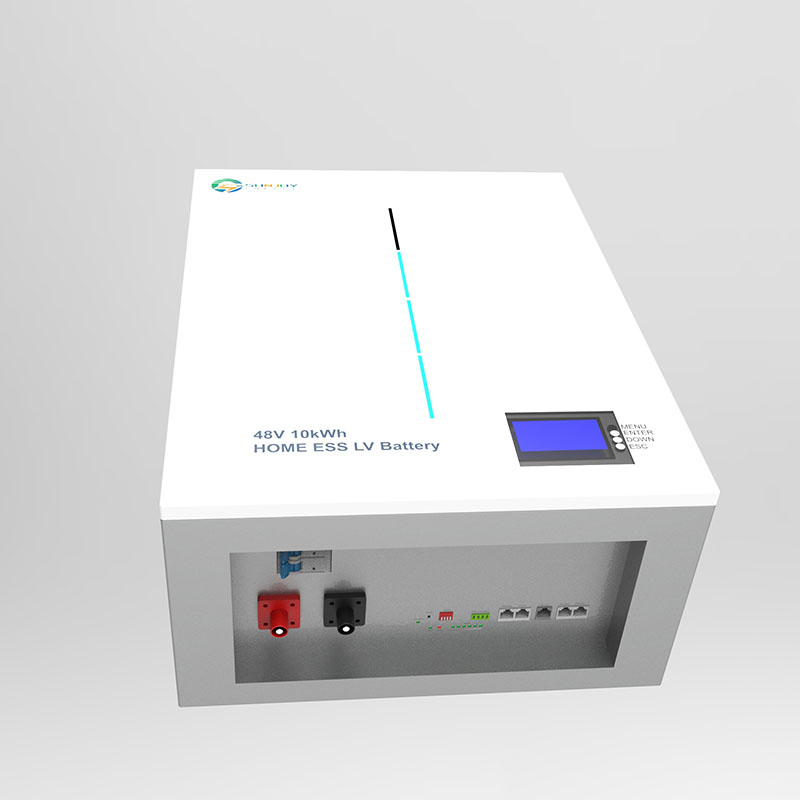

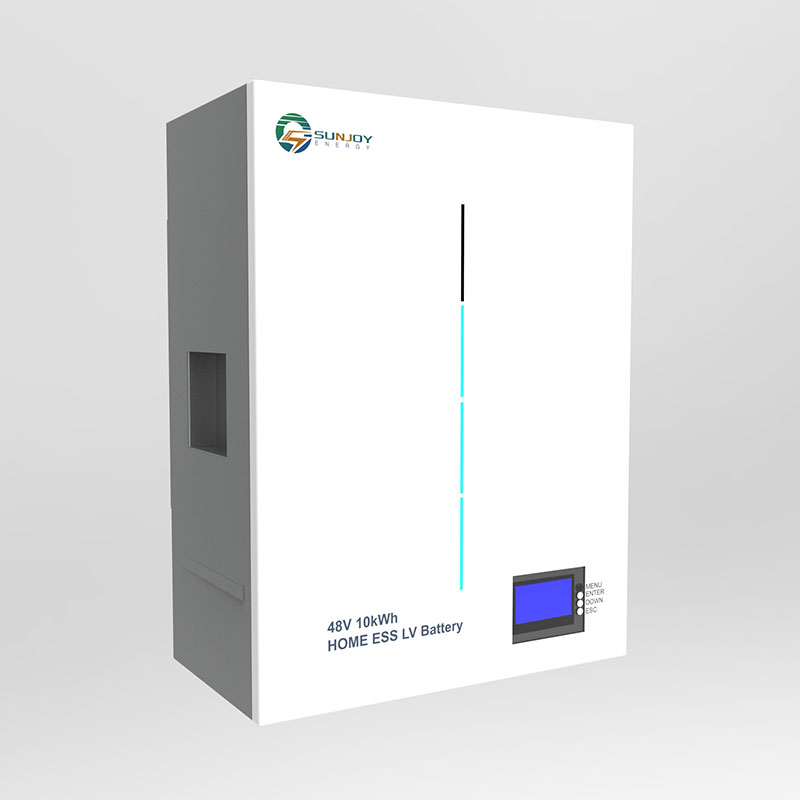

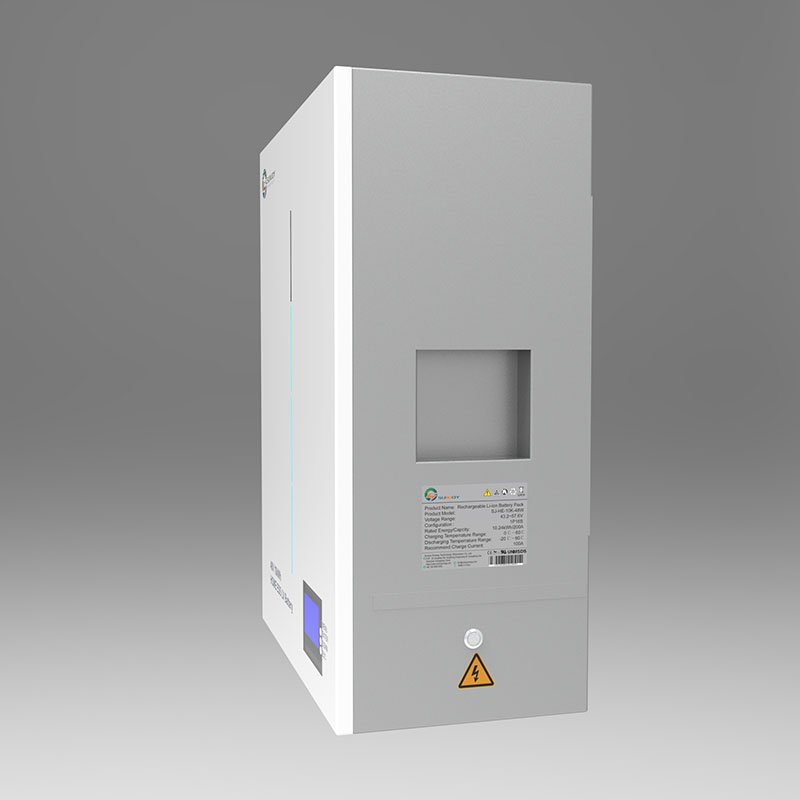

Sunjoy Energy SJ-HE-10K-48W 10kWh Wall Mounted Home Energy Storage Battery
Reliable Power Storage Solution for Modern Homes
The Sunjoy Energy SJ-HE-10K-48W is a next-generation wall-mounted lithium battery designed for residential solar energy storage applications. With 51.2V 200Ah capacity and 10kWh usable energy, it stores solar power efficiently and provides stable backup energy for homes, villas, and small commercial applications.
Powered by EVE 202Ah Grade-A LiFePO4 battery cells, this battery delivers excellent safety, high energy density, and a long service life of more than 8000 cycles.
Smart BMS with Active Cell Balancing
The battery integrates an intelligent Battery Management System (BMS), providing:
- Active cell voltage balancing
- Over-charge protection
- Over-discharge protection
- Over-current protection
- Short-circuit protection
- Temperature monitoring
- Real-time battery communication
The advanced BMS helps maintain battery consistency, improves system efficiency, and extends overall battery lifetime.
Wide Compatibility with Major Solar Inverters
Sunjoy Energy SJ-HE-10K-48W supports communication with most mainstream inverter brands, including:
Deye | Solis | Growatt | GoodWe | Voltronic And other RS485/CAN communication compatible inverters
Our engineering team can assist with inverter communication matching and configuration before shipment, ensuring smooth installation for different solar systems.
Compact Wall Mounted Design
Designed for modern residential environments, the battery features:
- Capacity: 10.24kWh
- Nominal Voltage: 51.2V
- Capacity: 200Ah
- Maximum Current: 100A
- Thickness: only 238mm
- Width: 435mm
- Height: 576mm
- Weight: approximately 65kg
The slim wall-mounted structure saves installation space and provides a clean, professional appearance.
High Safety & Weather Protection
The battery enclosure provides reliable protection for indoor and outdoor applications:
Protection level: IP54 standard
Optional upgrade: IP65 waterproof design
Suitable for residential solar systems
Excellent dust and moisture resistance
It can be installed in garages, utility rooms, outdoor walls, and covered outdoor areas.
Long Lifetime & Warranty Support
Sunjoy Energy provides professional factory support:
- Battery cycle life: 8000+ cycles
- Design life: up to 15 years
- Warranty: 5 years standard
- Extended warranty: up to 10 years available
- Factory direct supply
- OEM & ODM customization supported
